To generate thousands of QRs with one click, in minutes, supports Excel and Text file data import (with template provided).

It supports most popular barcode symbologies, can produce barcode Image of PNG, JPG.

It supports label printer, and A4 typesetting print with A4 printer, or generate A4 composed image, the size and appearance can be customized.

HOW TO

Preview

Size and pix adjustment

Unit in pix or mm

Small tag print setting

A4_printer

Batch generate or print

Save barcode images in single ones or A4 composed typesetting pictures - batch generate

License key and register

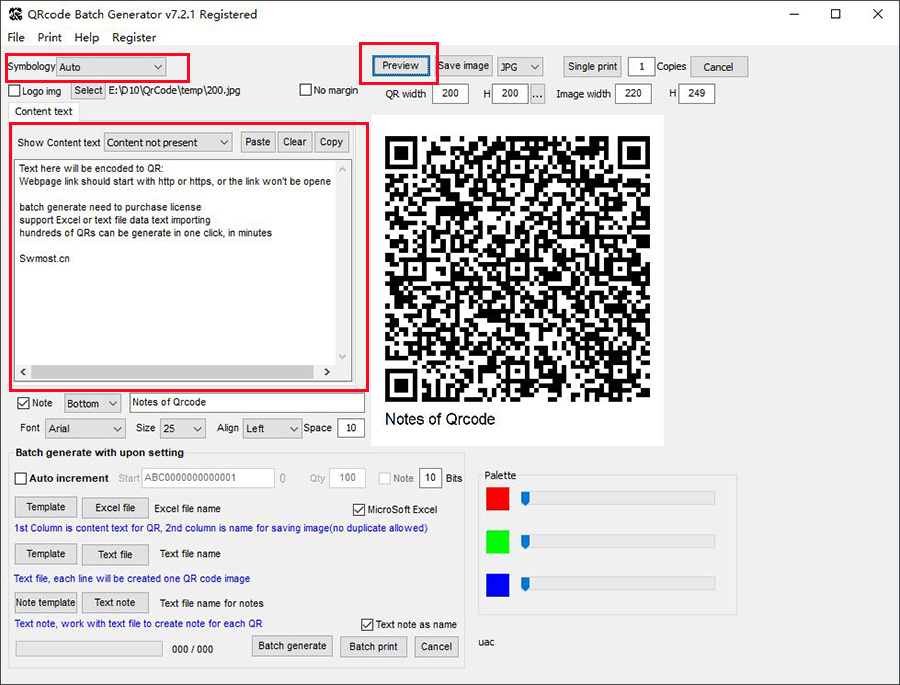

Preview:

Select Symbology (normally "Auto" is OK)

Type or input text content in the content box

Click "Preview" button

We got the standard QR, can be scan for all QR scanner, just try it

Top

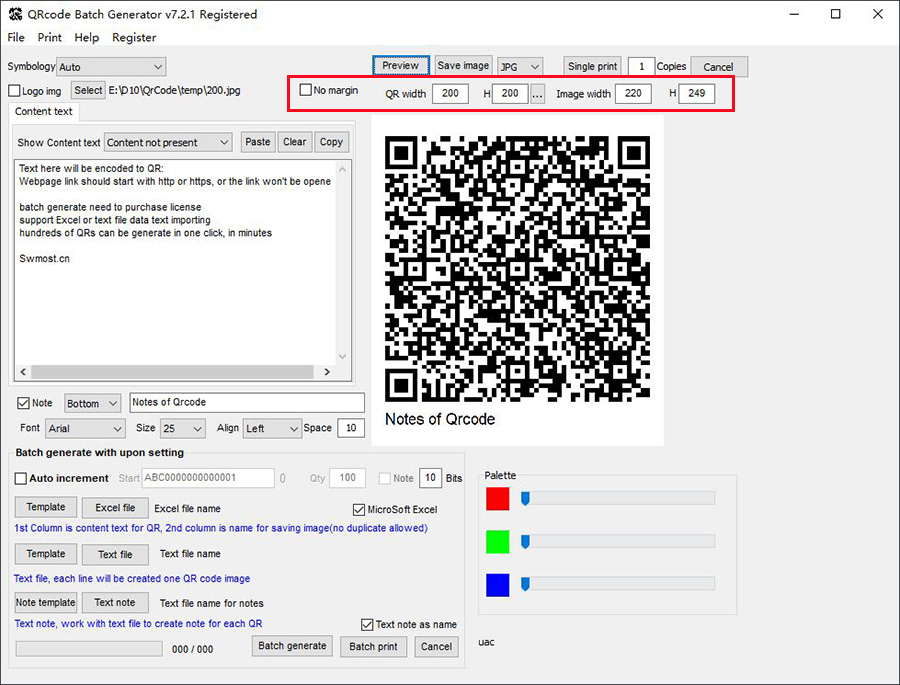

Size adjustment:

QR width and H are for QR image width and height, the QR image is within whole image (QR + margins)

Image width and H are for the whole image (whole image must equal or larger than QR)

Click "No margin" checkbox, can cancel all margins.

Unit in pix or mm? please read below

Top

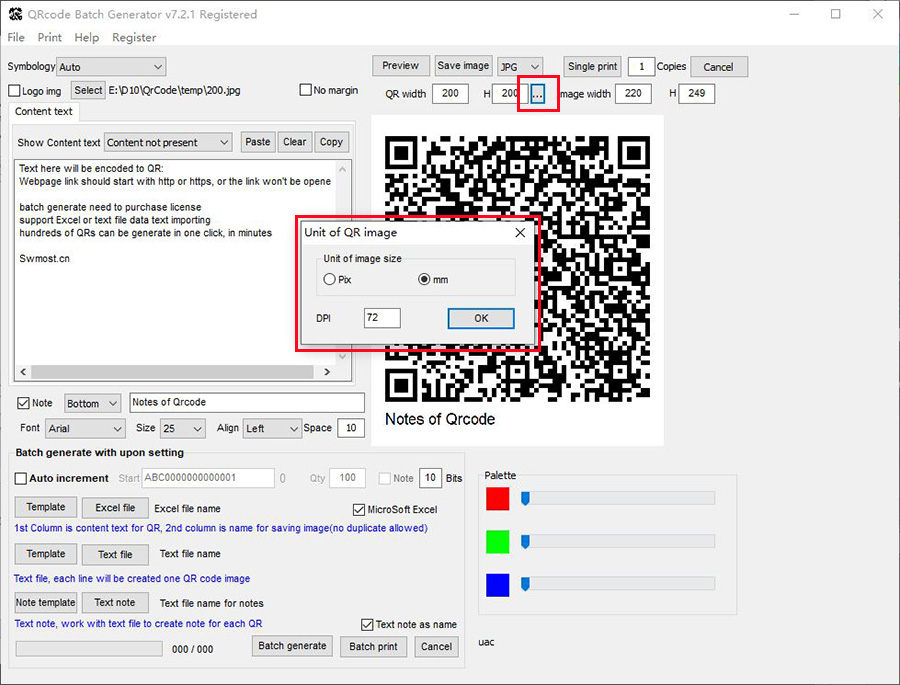

Click "..." after the QR size to open the options for unit.

Please set DPI when select mm as unit. (what's DPI)

Top

Notes can be bottom or top of QR, it used to explain the QR, not encoded in QR.

"Space" is the space between QR and notes, unit in pix.

Top

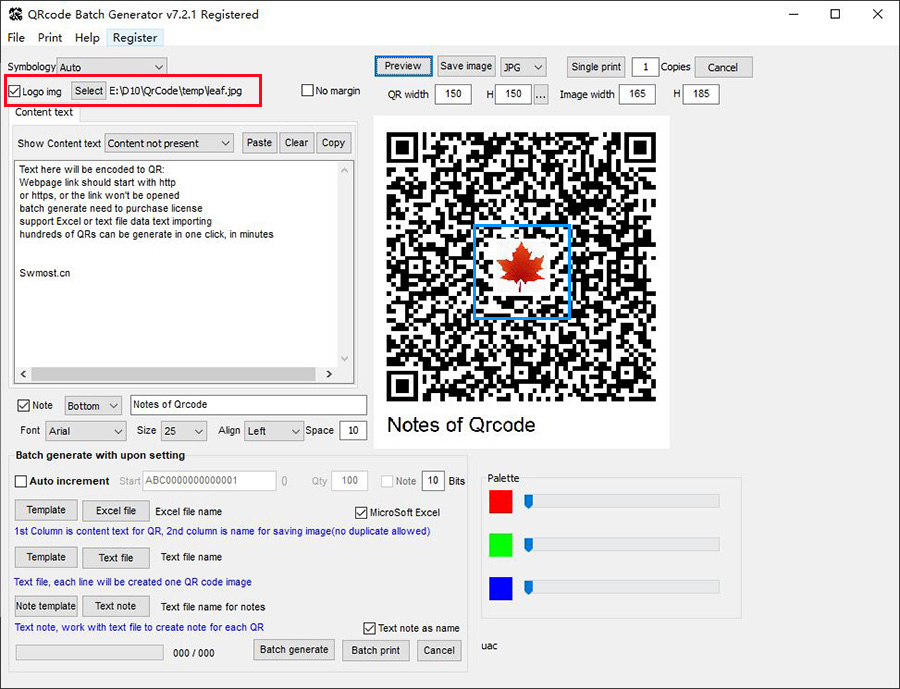

Check "Logo img" checkbox, and select the logo image file

Click "Preview" button, we got the icon in the QR center

Top

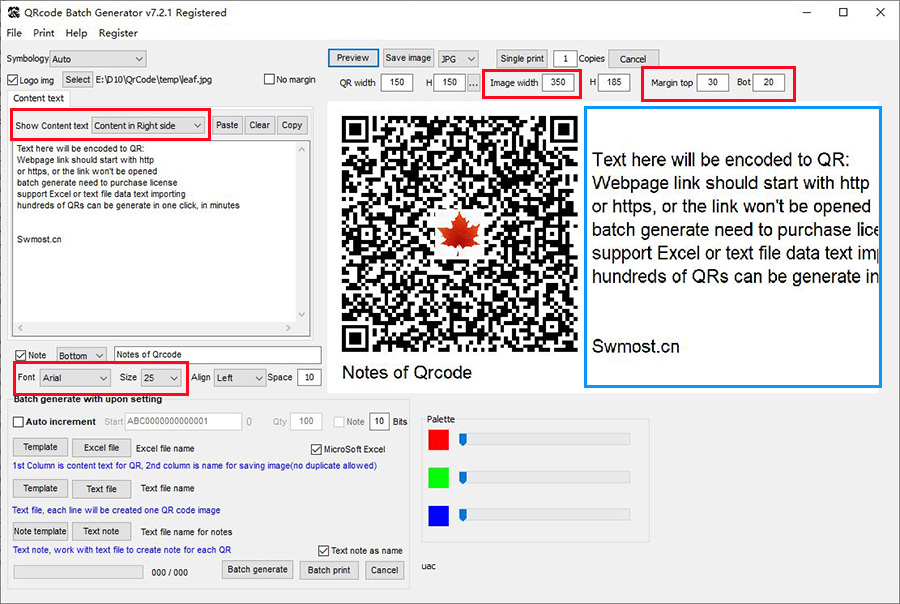

"Show content text" default is not show, we can select "Content in right side", click "Preview" button.

May need to widen the image width to make room to show the content, and to widen the frame width to show the whole image.

"Margin top/bot" are margin of content text, unit in pix.

Font name and size can be set, they are normally same as note's font name and size.

Top

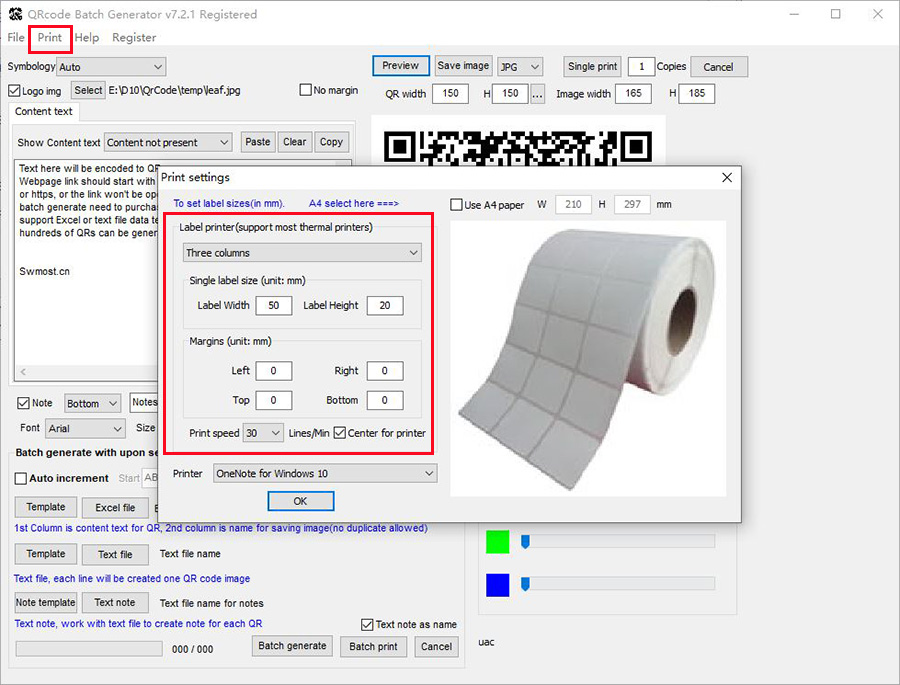

Click "Print" in menu

Select tag type, set the sizes, and select printer.

Top

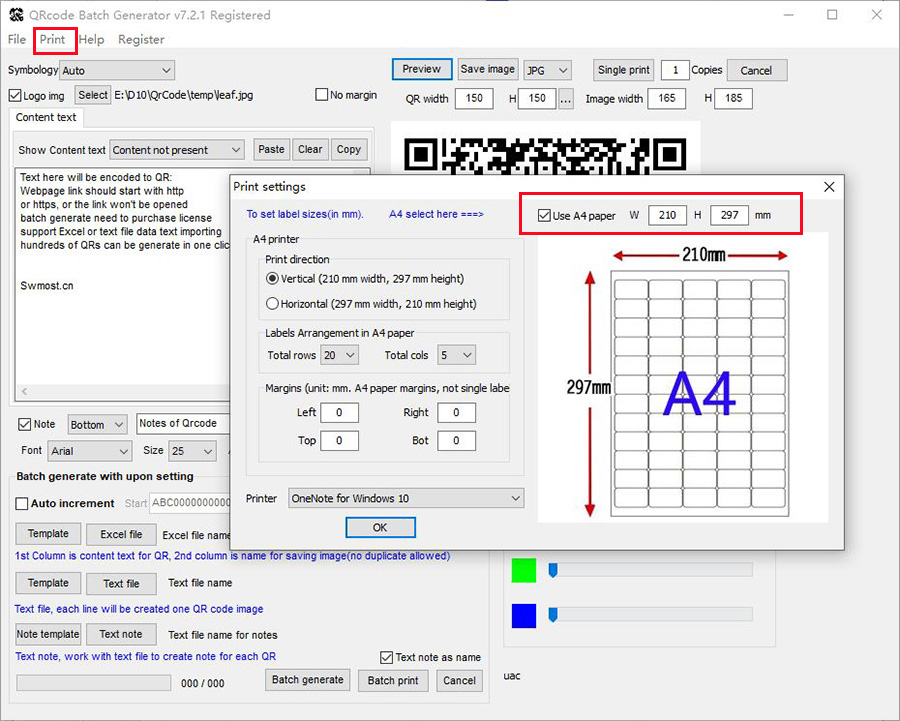

Check "Use A4 paper" check box, size can be set to fit the real page incase not A4.

Set rows and cols for one page.

Top

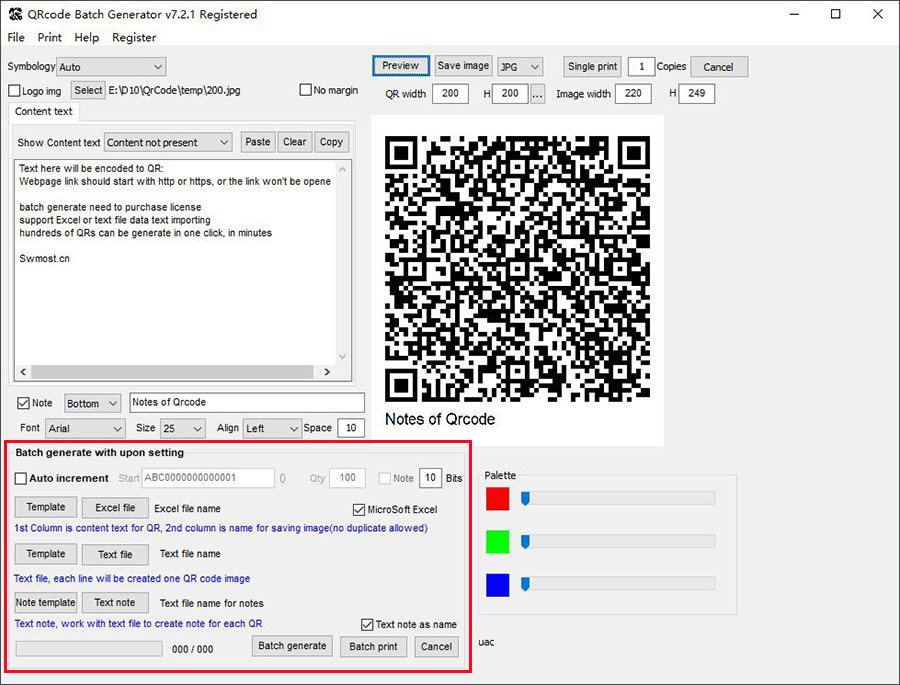

Batch generate

QR content text can import form Excel or text file, following the template provided.

Click "Batch generate" button will save QR images, click "Batch print" button will print directly.

Top

Save QR images in single ones or A4 composed typesetting pictures - while batch generate

If select A4 paper, the images will be composed typesetting pictures when batch generating;

If select none-A4 paper, the images will be single ones when batch generating.

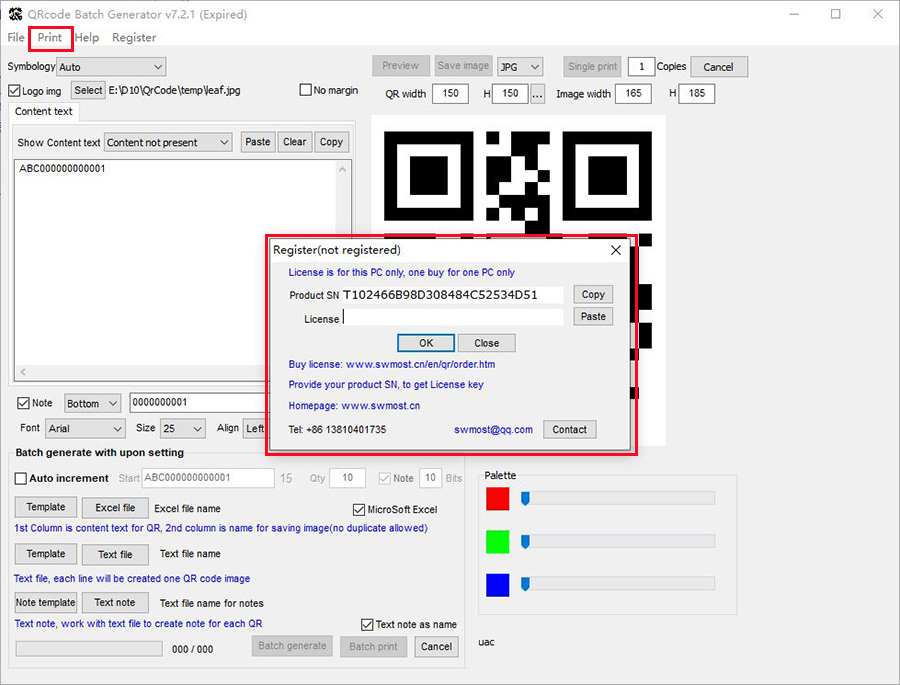

License key and register

Please provide the "Product SN" to get the license key, when you purchase it.

Once bought and registered, the license won't be expired for the PC, please note one license key for only one PC.

Free load upgrade will be reminded once new version is available.

Top

download zip file          exe file                $9.99 to buy
